Why a circle's area is πr²

Video: final.mp4 · 1920x1080 · 30 fps · 70.00 s · 7.8 MB · -14.0 LUFS / -1.9 dBTP · sidecar captions captions.srt (minimal style) Shorts cut: shorts-9x16.mp4 · 1080x1920 · 30 fps · 70.00 s · 7.7 MB · -14.0 LUFS / -1.9 dBTP · captions burned in (90 px, at most 4 words and 2 lines, bottom at 1402 px) · cover poster-9x16.jpg (frame 0)

The request#

"Make a narrated 70-second math explainer showing why the area of a circle is pi r squared, with real animated equations."

Mode: quick, publish-bound (researcher and critic). The opening line stated the assumptions:

Quick mode: 70 s, 16:9 plus a 9:16 re-layout for Shorts, Manim with real LaTeX. The argument: cut the disc into thin rings, straighten them, stack them into a triangle (height r, base 2πr), stated as a limit. Voice af_nicole, a very quiet pizzicato bed, soft clicks on the ring steps and a chime on the payoff; no history claims.

The contract: cut a circle into thin rings, straighten each ring, and they stack into a triangle whose height is r and whose base is 2πr; half base times height is πr².

The story, beat by beat#

One narration line per beat; every reveal waits for its word (self.at("word")), so the picture lands on the voice's clock.

Honesty choices (from the researcher's notes): the strips are as long as each ring's outer circumference, so the bottom strip is exactly 2πr at every ring count and the stair sits slightly over the triangle; the overshoot visibly shrinks from 8 to 64 rings. The narration says "close to a triangle" before the ladder and "as the rings get thinner … becomes a triangle" after it. The strips are left-aligned, so the limit is a right triangle, but the narration only says "a triangle". No numbers appear on screen except r, 2πr, πr² and the ring counts. No history claims.

The 3D coda was cut (the brief's optional "stack discs into a cylinder, V = πr²h"): it answers a different question (volume), it would push the video past the brief's 75 s cap, and ending on the circle-and-triangle image is the payoff. ManimGL is therefore not shown in this example. The optional engine was smoke-tested here (a tilted disc in a ThreeDScene renders headless on this Mac through showtime manim render file.py); the CE Show3DScene fallback was not needed.

What it demonstrates#

• manim new --template refine, then a hand-written six-scene scenes.py with the beat sheet as its docstring. manim check (cue words, holds, word budgets, colours, LaTeX) ran after every edit and ends at 0 errors, 0 warnings.
• Narration sync: voice script --fit 70 (124 words, af_nicole at x1.09; before the fit the script ran 74.1 s), manim cues for the numbered words, and every scene on the voice clock. voice ipa checked "pi r squared" and "circumference" (pi = paɪ, r = ɑːɹ); no lexicon entry was needed.
• The st_manim kit: eq() with concept colours from manim.json (area = blue for the disc, rings, strips, triangle, A and πr²; r = green; the circumference 2 and πr = pink), morph() for both equation steps (one change per step, key_map turning πr into πr²), refine() for the ladder, place/fit_width/is_portrait for layout, title, label, backstroke, glow_dot, highlight, counter/count_to, and TransformFromCopy from shape to symbol.
• Words and math on one line: mixed_line("Why", tex(r"\pi r^2"), "?", size=88) sets the question on one baseline, scales πr² to the display font's x-height and sets it bold to match the heavy display weight; align_baseline(label, counter) keeps "rings 8" on one baseline while the number counts. manim check measures every such line (baseline_mismatch, xheight_mismatch, mixed_type).
• Custom geometry, same kit: one function (band_points) bends a ring's outer edge from a circle to a straight line while keeping its length, so a ring truly unrolls into its strip, and the circumference unrolls onto the base with the same code.
• Draft → final: seven 480p15 drafts with contact sheets (16:9 and 9:16), then 1080p30 finals. Scenes cache separately: a Payoff-only change re-rendered in about 37 s.
• --aspect 9:16: the same scenes re-lay themselves out for a vertical frame. A base of 2πr across 1080 px keeps a horizontal diagram tiny, so the strips stack small and horizontal while the voice says "shortest on top", then on "They pile up" the whole picture turns a quarter turn and grows (r from 1.0 to 1.6 units): the base runs down the left edge (about 1360 px), the disc sits beside it and the equation below the disc, clear of the Shorts buttons and the captions. All stair and triangle geometry is written in the frame's own axes (along the base, up the height), so one set of functions draws both layouts.
• Sound: --mix audio/mix.json with a composed playful-pizzicato bed (GeneralUser GS SoundFont, seed 4, ducked 8 dB under the voice with carve 0.4), 11 synthesized soft clicks (the 8-ring cut and the 16/32/64 steps) and a chime in the bed's key (D) as A = πr² is boxed.
• Captions: a minimal SRT sidecar for the 16:9 upload; clean captions burned into the Shorts cut at 90 px, at most 4 words (Shorts take no sidecar and are mostly watched muted). showtime captions has no size flag, so the review round called its build() with a size override and burned with showtime's ffmpeg (see the review round below).

Commands, in order#

showtime is skills/showtime/bin/showtime; <job> is showtime-out/circle-area-20260927-113957 and <m> is <job>/manim (this folder's project/).

showtime doctor --quick                                   # 21 pass (manim, latex, manimgl present)
showtime job init circle-area --mode quick --platform youtube \
  --goal "Make a narrated 70-second math explainer showing why the area of a circle is pi r squared, with real animated equations." \
  --assumed "..."                                          # 4 assumptions, see the quote above
showtime manim new <job>/manim --template refine
showtime voice ipa "Why is the area of a circle pi r squared? two pi r, times r. circumference" -v af_nicole
showtime voice script <m>/narration.md -o <m>/voice/        # 82.5 s -> cut to 124 words (74.1 s)
showtime voice script <m>/narration.md -o <m>/voice/ --fit 70   # speed x1.09, 70.00 s
showtime manim cues <m>
showtime manim check <m>                                  # line ids that are also words ("thinner", "half",
                                                          #   "base") resolved as lines -> ids renamed
showtime manim render <m>                                 # draft 1: refine overlay bug, tiny labels
showtime manim render <m>                                 # drafts 2-5: labels, z-order, equation size, mix
showtime manim render <m> --aspect 9:16                   # drafts 6-7: vertical layout
showtime snap <m>/out/circle-area-draft-N.mp4 --at ... --sheet   # after every draft
showtime job note <job> --stage plan ...  ;  showtime job note <job> --stage first-look ...
showtime manim render <m> --quality final -o <job>/final.mp4      # final.mp4
showtime qa <job>                                         # FAIL: frozen 23.0-30.3 s and 48.4-54.5 s
#   -> each beat now changes a large area on its word (focus dims, the pile flash, the veil, the
#      radius sweep, the ring fill); final-2 WARN, final-3 PASS; final-4 fixes the disc vanishing at 60.5 s
showtime review-pack <job>                                # round 1, self-review (FINDINGS.md): ship
showtime manim render <m> --quality final --fresh -o <job>/final.mp4   # final-6: ring counter moved
showtime manim render <m> --quality final -o <job>/final.mp4            # final-7: triangle outline on its own edges
showtime qa <job>                                         # PASS, 0 warnings, -14.0 LUFS, -1.9 dBTP
showtime captions <m>/voice/vo.words.json --style minimal --size 1920x1080 -o <job>/captions.ass --srt <job>/captions.srt
showtime manim render <m> --quality final --aspect 9:16 --fresh -o <job>/vertical-9x16.mp4
showtime captions <m>/voice/vo.words.json --style clean --max-words 4 --burn <job>/vertical-9x16-2.mp4 -o <job>/shorts-9x16.mp4
showtime qa <job>/shorts-9x16.mp4 --platform shorts       # WARN, see below
showtime job note <job> --stage verify ...  ;  showtime job note <job> --stage deliver ...
showtime clean <job> --yes                                # freed 7.9 MB
# review round 1 (critic: 16:9 ship, 9:16 ship after fixes) -> see "Review round 1" below
showtime manim render <m> --aspect 9:16 --fresh           # draft 8: quarter-turn layout
showtime manim render <m> --quality final --fresh -o <job>/final.mp4    # final-8..11 (qa PASS)
showtime manim render <m> --quality final --aspect 9:16 --fresh -o <job>/vertical-9x16.mp4   # -3..-5
# captions: st.footage.captions.build(style clean, max_words 4, portrait size 0.0833 = 90 px), burned onto vertical-9x16-5.mp4
showtime qa <job>/shorts-9x16.mp4 --platform shorts --captions <job>/shorts-9x16.ass
showtime snap <job>/final-11.mp4 --at ...  ;  showtime snap <job>/shorts-9x16.mp4 --at ...
# review round 2 (a person: the opening title's math sits low) -> see "Review round 2" below
showtime manim check <m>                                  # before: 15 WARN (baseline_mismatch 34 %,
                                                          #   xheight_mismatch 80 %, mixed_type; "rings 8" 30 %)
showtime manim check <m>                                  # after mixed_line / align_baseline: 0 warnings
showtime manim render <m> --quality final -o <job>/final.mp4                       # final-12
showtime manim render <m> --quality final --aspect 9:16 -o <job>/vertical-9x16.mp4 # -6, then -7 (9:16 spacing)
# captions: the same shorts-9x16.ass burned onto vertical-9x16-7.mp4 -> shorts-9x16-3.mp4
showtime qa <job>/final-12.mp4  ;  showtime qa <job>/shorts-9x16-3.mp4 --platform shorts --captions <job>/shorts-9x16.ass
showtime snap <job>/final-12.mp4 --at 0,1.5,7,20 --compare <job>/final-11.mp4
showtime snap <job>/shorts-9x16-3.mp4 --at 0,7 --compare <job>/shorts-9x16.mp4

--fresh was needed twice: the per-scene cache does not see edits to module-level helper classes (here Lay, the layout), so a layout-only change otherwise reuses stale scenes.

QA summary#

• 16:9 final.mp4: PASS, 0 warnings. -14.0 LUFS integrated, -1.9 dBTP true peak; no silent gaps, no black or frozen stretch over 2.5 s; captions.srt 27 cues, readable lengths. One INFO: the last 3.4 s are the designed still hold on the poster image.
• 9:16 shorts-9x16.mp4: PASS when checked on its own (0 warnings; burned shorts-9x16.ass 33 cues, readable; no frozen stretch over 2.5 s; -14.0 LUFS, -1.9 dBTP). Checked inside the job folder, qa still adds three caption WARNs about the job's 16:9 sidecars (captions.ass/captions.srt: 41-character lines, 115 px from the bottom), which do not ship with the Short; --captions adds a file but does not drop the job's own.
• Mix report: voice 22.9 dB over the bed. 8 of the 11 soft clicks land on spoken syllables and are flagged as likely masked; they are texture under the cut, not cues. The chime is 11 dB clear.
• Critic (self-review, no sub-agent tool in this session): verdict "ship". Fixed on the way: the disc vanishing during the last morphs (60.5 s), two frozen FAILs, the ring counter touched by the peeling rings, an outline that overshot the triangle's 9° tip. A second look by a person is still welcome.

Review round 1#

A critic reviewed the shipped files (not the self-review pack): 16:9 ship, 9:16 ship after fixes. Every should-fix and the cheap polish were applied, re-rendered, qa'd and checked with a still at each cited time.

• 9:16 diagram too small from 16 s (should-fix; the cause of the old frozen WARN): the quarter turn described above. The disc is now 432 px across (was 269 px), the stair and triangle about 1360 x 216 px (was 848 x 136 px). The equation's right edge is at about 910 px (was 972 px).
• 9:16 burned captions small (should-fix): 90 px Inter (was 56 px), at most 4 words and 2 lines, bottom at 1402 px. The hook disc and its "rings 8" moved up so the counter clears the captions.

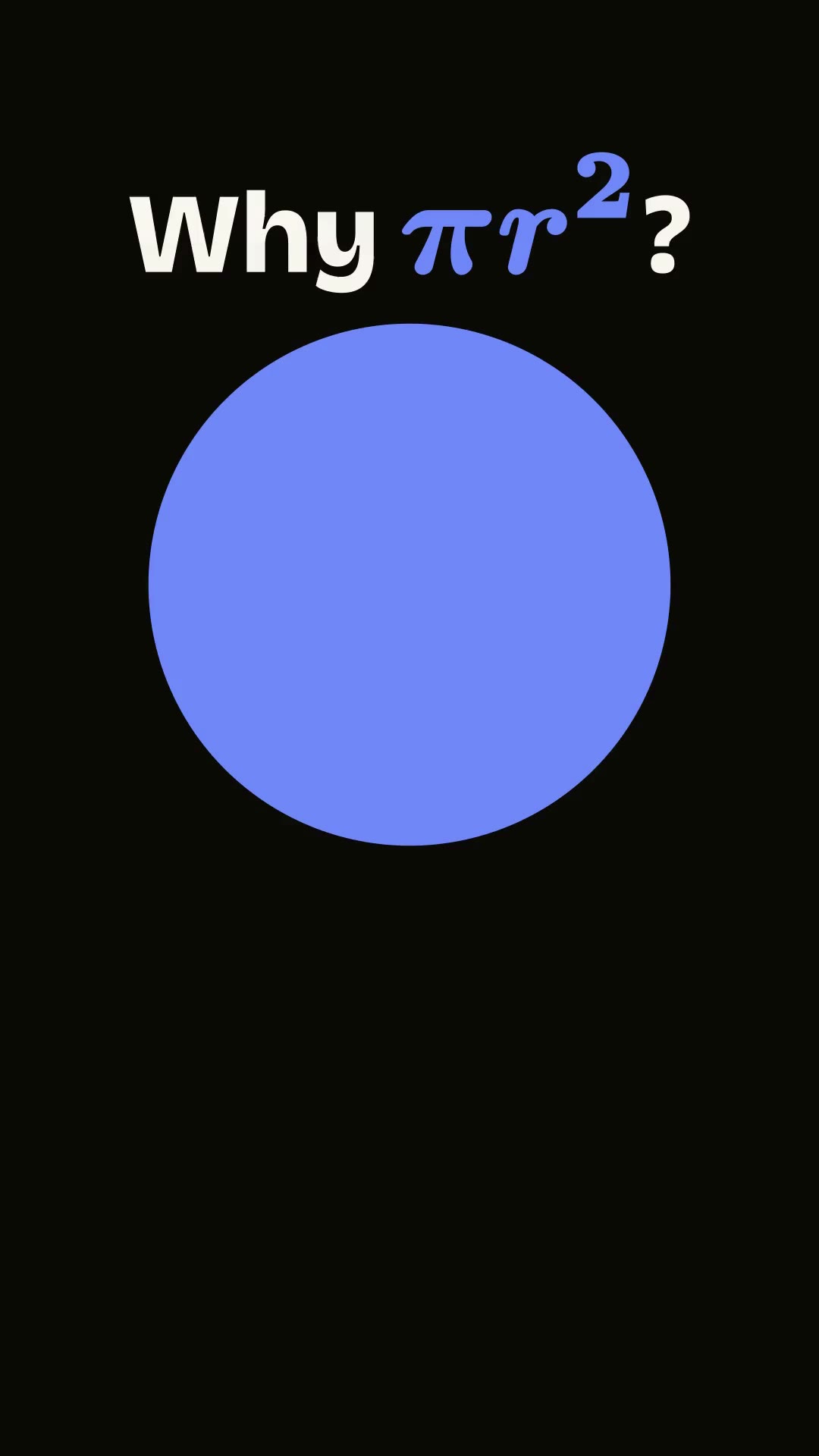

• 9:16 cover (polish): poster-9x16.jpg is now frame 0, "Why πr²?" over the big disc.
• "Very thin" brace (polish): the ring's two edges light up in 7 px white strokes with the brace.
• Still stretches near 2 s (polish): "onion" pulses the rings (7.3-9.4 s hold gone); the overhanging steps flash against a brighter veil in the pileup pause (27.9-30.0 s hold gone). The circumference unroll (46-48.7 s) and the 9:16 cancellation (57.4-59.9 s) now change a large area too (the outermost ring drains away; the fills dim for the algebra). Longest hold now 2.3 s.
• Cancellation (polish): ½, its dot and the 2 fade out together before πr moves, so "πr2" never reads.
• "A =" writes in as outlines (polish): it fades in.
• Doubled ring on the poster (polish): the final outline is drawn on the circumference itself.
• Mixed "r" styling (polish): the triangle's r uses the disc's size and backstroke and sits inside the triangle, well inside the title-safe margin.
• Not changed: the voice, narration, mix and 16:9 captions (same timeline). The 9:16 turn briefly passes behind the caption "They pile up into" (24.0-25.3 s).

Review round 2: the type detail pass#

A person caught what the critic, the self-review and every check missed: in the opening title "Why πr²?" the math sat on a lower baseline than "Why" and "?" (34 % of the cap height, about 37 px at 1080p), about a size smaller (x-height 80 % of the display font's) and in a much lighter weight. The line had been built with arrange(aligned_edge=DOWN), which lines up the lowest points of the boxes: the descender of "y" pulled the words down, and a hand nudge moved the math further. Contact sheets shrink this away, so nobody looked at it at full size. "rings 8" had the same flaw (the "g" of "rings" lowered the label; the number sat 30 % of the cap height off).

• Fix: the question is a mixed_line() (one baseline measured on the glyphs, πr² at the display font's x-height, \boldsymbol plus a thin outline in its own colour to match the ULTRABOLD display weight); "rings 8" uses align_baseline(). In 9:16 the question is set at 80 (was 88) and kept 0.3 units above the disc, so the "y" stays clear of it.
• Checked: manim check 0 warnings (15 before); 16:9 qa PASS (0 warnings, -14.0 LUFS, -1.9 dBTP); the Short's own captions PASS (the same three 16:9-sidecar WARNs as above). Full-size crops before and after: the title at 0 s and "rings 8" at 7 s, in both aspects.
• Process: review packs now cut the largest text lines out of full-size frames (frames/text-*.png) and the critic brief has a type detail pass (baselines, sizes and weights of words, math and numbers on one line; kerning; widows).

Sources and licenses#

• Math: every narrated sentence uses wording the researcher cleared against https://en.wikipedia.org/wiki/Area_of_a_circle (the "Onion proof" and "Triangle proof" sections: A = πr², C = 2πr, triangle area ½ · base · height, the ring picture as a limit argument), accessed 2026-09-27. Written in our own words; no third-party media.
• Voice: Kokoro-82M v1.0, af_nicole (Apache-2.0), synthesized locally.
• Music: composed locally with showtime audio compose (playful-pizzicato, seed 4), rendered with the GeneralUser GS 2.0.3 SoundFont (GeneralUser GS License v2.0: free use, no attribution clause). Effects: click and chime synthesized by showtime audio sfx (no samples).
• Equations: LaTeX (TeX Live 2026), Computer Modern from amsfonts (SIL OFL). Type: Bricolage Grotesque and Inter (SIL OFL 1.1).
• Animation: Manim Community Edition 0.21 (MIT). ManimGL 1.7.2 (MIT) was smoke-tested only.
• Credits: nothing requires attribution, so there is no credits.txt (qa: "no attribution required").

Files#

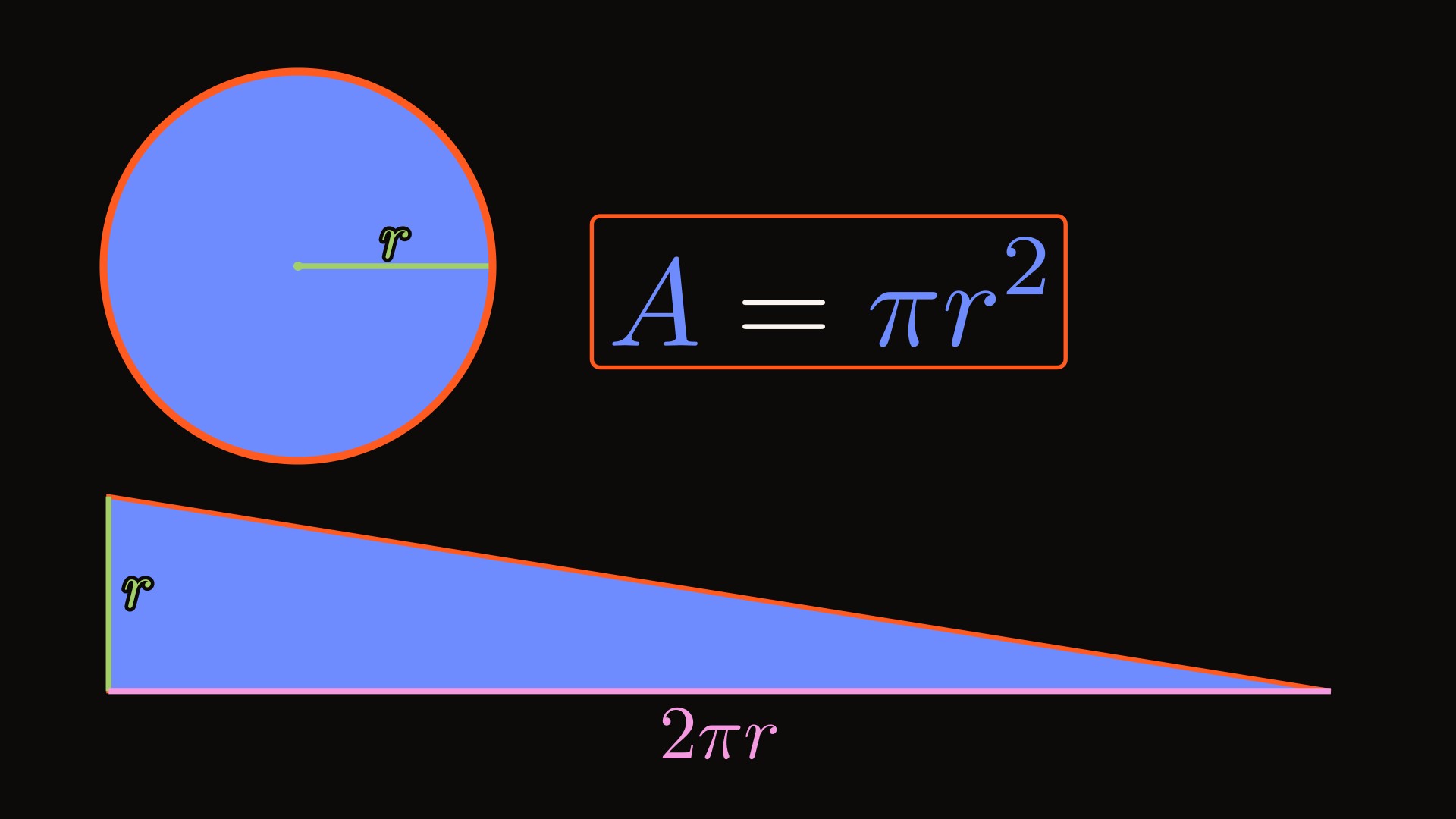

• final.mp4, poster.jpg (the marked poster frame, 66.6 s), captions.srt, share.txt
• shorts-9x16.mp4, poster-9x16.jpg
• project/: manim.json (scenes, concept colours, mix), scenes.py (six scenes plus the beat sheet), narration.md, audio/mix.json, voice/timeline.json, voice/vo.words.json, voice/vo.srt. The voice audio, Manim caches and drafts are rebuilt by the commands above.

The project files on GitHub
