Data story

Video: final.mp4 · 1920x1080 · 30 fps · 30.00 s · 15.7 MB · -14.0 LUFS / -1.4 dBTP (re-rendered for the stricter check: see "Re-render" after review round 2)

The request#

"Make a 30-second data story from this CSV" A real public-domain dataset (NASA GISS GISTEMP annual global means), downloaded and imported with showtime data import, as an animated chart story with a clear takeaway, a music bed, at 1920x1080.

Mode: quick (no questions asked). The opening line stated the assumptions:

Quick mode: 30 s, 16:9, NASA GISTEMP v4 annual means 1880-2025 (2026 is partial, left out). Takeaway: the 11 warmest years in the record are the last 11 (2015-2025), and 2024 is the warmest at +1.29 °C above the 1951-1980 average. Editorial look, composed cinematic bed, no voice-over.

The story, and where each claim comes from#

Every number on screen is read from data/gistemp-global-annual.csv (the J-D column of NASA's file, copied exactly). Nothing is smoothed, rounded, extrapolated or filled.

What it demonstrates#

• CSV to chart in one command. showtime data import turned the table into both chart files: the full 146-year series (data/gistemp-annual.json) and the 11 warmest years as ranked bars (data/warmest-11.json, pointed at the bars scene with --scene). The numbers never live in HTML.
• Custom components next to the stock ones. Temperature anomalies go below zero, and the stock chart component scales from 0 upward, so project/stripes.js (about 210 lines, written with the documented define() API) draws the stripes and the bars around a zero line. project/warmest.js (about 120 lines) draws the top-11 bars. Unlike the stock chart, it shows each value only at its final figure and draws a reference line. Both read the imported JSON, take every colour from the page's token block, and are pure functions of time: check found them deterministic in any seek order.
• One visual spine. The same 146 marks are warming stripes in the hook, fold into a bar chart at the 5.0 s cut (the cut is invisible: the two frames around it differ by 0.35 grey levels on average), and come back under the closing number with 2024 marked.
• One insight per chart state. The bar scene has two states (the 1977-2025 run, then 2024 alone, with the rest dimmed and a slow push toward the recent end), each with its own title.
• Honest charting. Bars start at the 1951-1980 average, the baseline and units are on screen in every state, the source is cited in the last scene, and expect.must_show makes qa confirm that "+1.29", "1976", "2015" and "2025" are actually readable in the final.
• Sound. A composed cinematic-build bed (90 bpm, D minor, seed 2) whose sections start on the scene changes, with soft effects on the opening bracket, the fold, each annotation, the reference line, the cuts and the 2024 tick under the closing number.

Commands, in order#

showtime is skills/showtime/bin/showtime. <job> is showtime-out/gistemp-data-20260926-141059. The CSV was fetched once with curl from NASA (https://data.giss.nasa.gov/gistemp/tabledata_v4/GLB.Ts+dSST.csv) and reduced to year,anomaly_c with a short script that keeps the values exactly (see data/SOURCE.txt).

showtime doctor --quick
showtime job init gistemp-data --mode quick \
  --goal "Make a 30-second data story from this CSV: NASA GISS GISTEMP v4 ..." \
  --assumed "Data: GLB.Ts+dSST.csv, J-D annual means 1880-2025 (2026 is partial and excluded)" \
  --assumed "Takeaway: the 11 warmest years are the last 11 (2015-2025); 2024 warmest at +1.29 C" \
  --assumed "30 s, 16:9 1920x1080, editorial light look, no voice-over, composed cinematic-build bed" \
  --assumed "Warming-stripes band drawn from the same data as the visual spine"
showtime data inspect data/gistemp-global-annual.csv
showtime job note <job> --stage understand --verified "..." --next "..."
showtime new data <job>/project --title "..." --duration 30

# CSV -> chart JSON (the full series, and the 11 warmest as bars)
showtime data import data/gistemp-global-annual.csv <job>/project --chart line --x year --y anomaly_c \
  --scene lines --suffix " °C" --decimals 2 -o <job>/project/data/gistemp-annual.json \
  --title "Global temperature, 1880-2025" --subtitle "Annual mean vs the 1951-1980 average · NASA GISS GISTEMP v4"
showtime data import data/gistemp-global-annual.csv <job>/project --chart bar --x year --y anomaly_c \
  --top 11 --scene bars --highlight max --annotate "warmest on record" --prefix "+" --suffix "" \
  --decimals 2 -o <job>/project/data/warmest-11.json --title "The 11 warmest years on record: 2015 to 2025"
showtime snap <job>/project --at 12,20          # the stock line chart cannot show values below 0 -> stripes.js

# first look, fix, look again (8 rounds of stills while building)
showtime snap <job>/project --at 0.3,1.0,2.6,4.0,4.8,5.6,8.0,10.2,12.0,15.0,17.5,21,23,25,29.9 --width 960 --format jpg
showtime check <job>/project                    # 2 contrast errors (fading end labels), 4 warnings -> fixed
showtime check <job>/project                    # title exits late (exit-at counts from data-at) -> fixed
showtime snap <job>/project --every 1           # 30-frame contact sheet
showtime check <job>/project                    # PASS, 1 warning (a title mid-rise, read: not a real overlap)
showtime job note <job> --stage first-look --verified "..." --next "..."

# final, verify, fix, final again
showtime render <job>/project --job <job>       # final.mp4
showtime check <job>/project                    # records on-screen text for must_show
showtime qa <job>                               # WARN: two frozen holds (1.7-4.9 s, 7.1-10.9 s)
#   -> slow camera drift in stripes.js; hook text finishes its exit before the 5.0 s cut
showtime check <job>/project --find-first frozen
showtime check <job>/project
showtime render <job>/project --job <job>       # final-2.mp4
showtime qa <job>                               # PASS, 0 warnings
showtime review-pack <job>
showtime job note <job> --stage deliver --verified "..."

# review round (critic notes on final-2, see below)
showtime snap <job>/project --at 0.2,0.6,1.5,3.0,4.8,11.0,15.3,16.4,17.0,17.4,18.0,19.0,21.5,22.9,23.2,23.6,26.2 --sheet
showtime check <job>/project                    # 3 warnings (two title-rise overlaps, one contrast false positive) -> fixed
showtime check <job>/project                    # PASS, 0 warnings
showtime render project --job <job>             # final-3.mp4
showtime qa <job>                               # PASS; stills show the payoff scene still opens thin at 23.0 s
showtime render project --job <job>             # final-4.mp4 (earlier stripes wipe and headline, bars start sooner)
showtime qa <job>                               # PASS, 0 warnings
showtime review-pack <job>                      # round 2
showtime job note <job> --stage feedback --verified "round 2 applied: ..."

# second review round (critic notes on final-4, see below)
showtime snap <job>/project --at 0.034,1.0,10.2,19.5,22.7,23.8,24.35,26.2 --format jpg   # before stills
showtime snap <job>/project --at 0,0.6,1.2,3.0,4.6,10.2,19.5,22.55,22.7,22.9,23.8,26.2 --format jpg   # after
showtime check <job>/project                    # PASS, 0 warnings
showtime render project --job <job>             # final-5.mp4 (no poster bake-in)
showtime deliver poster <job> --at 3.0 --out <job>/final-5.cover.jpg   # cover image, not baked
showtime qa <job>                               # PASS, 0 warnings
showtime audio meter <job>/final-5.mp4
showtime job note <job> --stage feedback --verified "round 3 applied: ..."

The published final.mp4 is the job's final-5.mp4 (the CRF 16 master, 16.1 MB, under the 20 MB budget, so no re-encode was needed).

Review round 1#

A critic pass on final-2.mp4 (a separate reviewer working from the review pack and the published files) returned ship after fixes: no blockers, three should-fix items and six polish notes. Each one was confirmed on its cited frame before anything changed. The log is work/feedback.md in the job.

Before the fixes, qa was PASS with 0 warnings and check was PASS with 1 warning. After them, qa is PASS (0 fail, 0 warn, 0 note) and check is PASS with 0 warnings. The earlier 11.67 s title-rise warning is also gone, because subtitles now start after their titles land.

Review round 2#

The same critic reviewed final-4.mp4 (the round-2 pack) and returned ship after fixes: every round-1 fix had landed and there were no blockers, but two should-fix items were left, both about sync, plus five polish notes. Each one was confirmed on a showtime snap still before anything changed. This was the last review round (the protocol allows two), so the fixes were checked with stills, check, qa and the audio meter instead of a third critic pass.

After round 2: qa is PASS (0 fail, 0 warn, 0 note) at -14.0 LUFS and -1.4 dBTP (LRA 3.3), and check is PASS with 0 warnings. The log is work/feedback.md in the job; the before and after stills were compared frame for frame.

Re-render: stricter check (2026-09-28)#

showtime check was made stricter after this example shipped: contrast must reach 4.5:1 at every text size, and text must stay out of the bottom 8 % (where player controls sit) and at least 5 % from the top. On the unchanged project it gave FAIL, 1 error and 14 warnings:

• error: contrast 4.44:1 for the hook's legend ("One stripe per year: bluer is cooler, redder is warmer", 0:01.67): --warm #b8432f on the page colour #efe8dc;
• warnings: that legend (29 px), the eleven year labels under the bars (2015-2025, 31 px, 0:21.67) and the source line (29 px, 0:25.00) sat in the bottom 8 % of the frame; the "+1.29" count-up sat 32 px from the top edge (0:28.33).

Changes (all in project/index.html; no data, timing, sound or wording changed):

• check: PASS, 0 errors, 0 warnings (one note: the "1880" axis label is within 5 % of the frame edge at 0:11.67).
• Render: a Linux x64 machine (32 cores): 42 s for 900 frames (capture 34 s at 26.8 fps, encode 4.3 s), 15.7 MB, under 20 MB without an export. The last renders on the 6-core Mac took 45-53 s. qa: PASS (0 fail, 0 warn, 0 note), -14.0 LUFS, -1.4 dBTP, all four must_show figures on screen. poster.jpg is again the 3.0 s frame (deliver poster --at 3.0), not baked in.
• Review: review-pack on the new file, then a self-review of the contact sheet, the cut strips (the 5.0 s cut between the hook and the fold still lines up stripe for stripe) and the full-size text crops (no separate critic ran). No new findings.

Timings#

Measured on a shared 6-core Intel i5-8500 with about three other example renders running at the same time.

QA summary#

showtime qa returned PASS (0 fail, 0 warn, 0 note) on final-5.mp4, the file published before the re-render (the re-render's qa, also PASS with 0 warnings, is in "Re-render" above):

• file: h264 High, yuv420p, 1920x1080 at 30 fps, faststart, BT.709
• duration: 30.00 s, matching showtime.json
• loudness: -14.0 LUFS, true peak -1.4 dBTP
• audio: no silent gaps
• frame 0: has a picture (the full hook: headline over the stripes)
• no black stretches, no frozen stretches over 2.5 s
• must_show: "+1.29" (11.2-15.7 s), "1976" (7.3-11.0 s), "2015" (0.9-4.3 s), "2025" (0.0-30.0 s)
• no attribution required

showtime check: PASS with 0 warnings. It is deterministic, and the fonts are embedded (Instrument Serif, Fraunces for the display figures, IBM Plex Sans, IBM Plex Mono). There are no still holds and no overlaps. The mix report: LRA 3.3 LU, no warnings.

Before the critic, a self-review against the pack's CRITIC.md. Then two critic rounds and their fixes (above). Both review packs are in the job under review/.

Files#

final.mp4              the video (qa PASS)

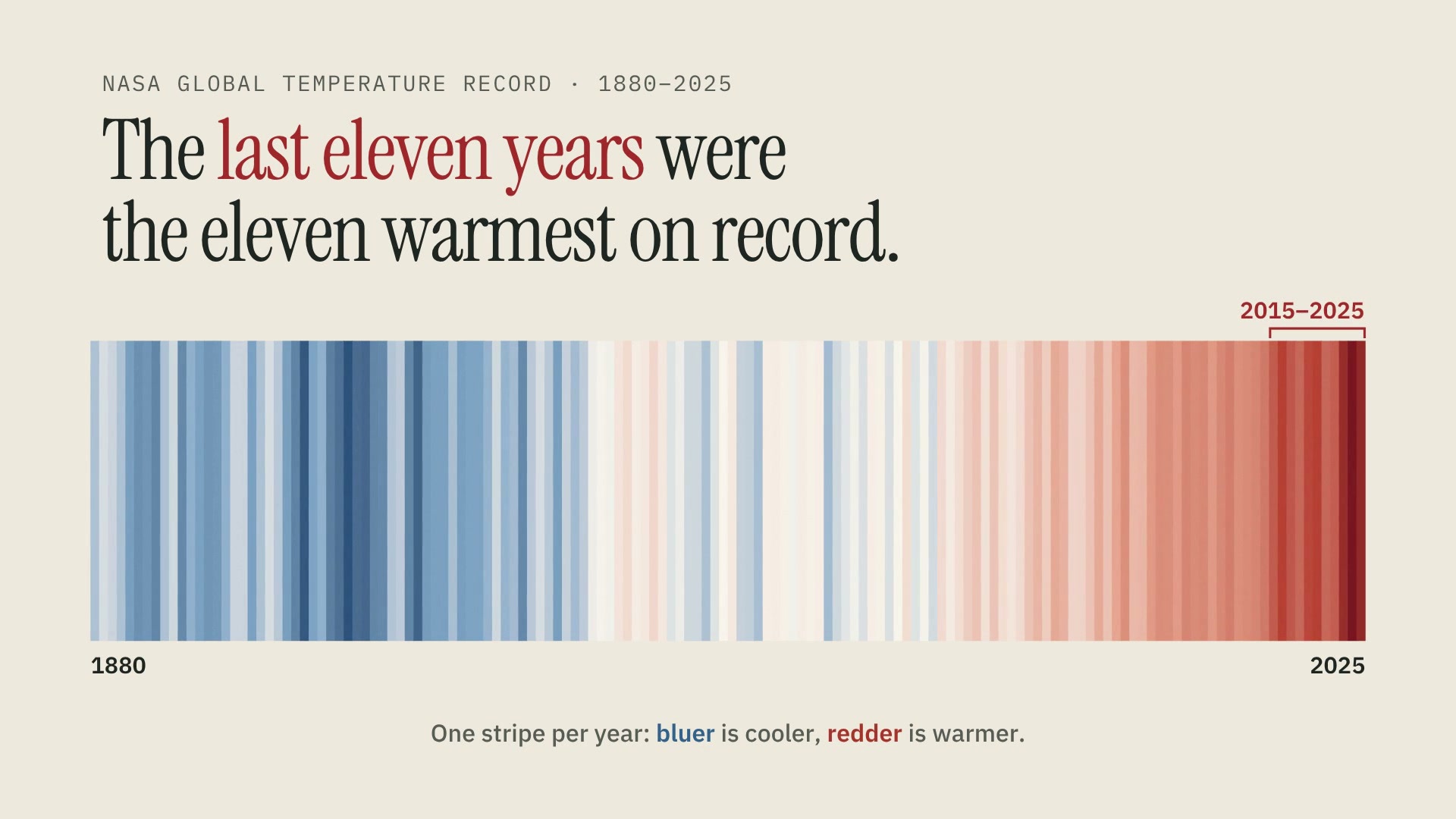

poster.jpg             frame at 3.0 s (the hook with the 2015–2025 bracket), a cover image to upload; not baked in
share.txt              post copy (X, LinkedIn, YouTube, README caption + alt text) and posting notes
data/
  GLB.Ts+dSST.raw.csv        NASA's file as downloaded (2026-09-26)
  gistemp-global-annual.csv  year + annual mean (J-D), 1880-2025: the table given to `data import`
  SOURCE.txt                 URL, units, baseline, citation, licence, what was changed
project/
  index.html           four scenes (open, lines, bars, stat) and the palette tokens
  stripes.js           the stripes / anomaly-bars component
  warmest.js           the top-11 bars with the next-warmest reference line
  showtime.json        1920x1080, 30 fps, 30 s, must_show figures (no poster time: frame 0 is the hook)
  audio/mix.json       composed bed + 9 effects, mastered to -14 LUFS
  data/                gistemp-annual.json and warmest-11.json, written by `showtime data import`

There is no voice script: this cut is music only. To re-render, run showtime render examples/07-data-story/project.

Sources and licences#

• Data: NASA GISS Surface Temperature Analysis (GISTEMP v4), Land-Ocean Temperature Index, global annual means, https://data.giss.nasa.gov/gistemp/. This is NASA data and a US Government work, so it is in the public domain. Citation: GISTEMP Team, 2026: GISS Surface Temperature Analysis (GISTEMP), version 4. NASA Goddard Institute for Space Studies. Values are as downloaded on 2026-09-26. NASA revises recent values as station data arrives, so they can move by a few hundredths.
• Warming stripes: drawn by stripes.js from the data above. The idea comes from Ed Hawkins' "warming stripes". No third-party graphic is used.
• Music: composed locally with the cinematic-build style, 90 bpm, D minor, seed 2. No samples and no library tracks.
• SFX: procedural (whoosh, thock, paper-swipe, ding).
• Fonts: Instrument Serif, Fraunces (digits in the serif headings), IBM Plex Sans and IBM Plex Mono, all served by showtime and all SIL OFL-1.1.
• There are no CC-BY assets, so no credits.txt is needed.

The project files on GitHub
