Seven looks, no GPU

An 18-second page that shows the seven WebGL looks of showtime 0.4.1, one scene each: a pane of fluted glass that forms over a photo of Jökulsárlón, a tilt-shift band that travels from the street up to the door of Hallgrímskirkja, a liquid-metal blob that reflects the word "showtime" from a soft box behind the viewer, god rays that come up behind the word "Northlight", a mesh gradient drifting behind a title, white marble whose veins flow slowly, and, after a gooey wipe across the cut, metaballs that grow in, drift apart and gather into one blob. They are components like any other (data-st="fluted-glass", data-st="tilt-shift", data-st="liquid-metal", data-st="god-rays", data-st="mesh-gradient", data-st="marble", data-st="metaballs"), drawn by showtime's own WebGL layer, and need no GPU.

Render it again from the repository root:

skills/showtime/bin/showtime render examples/_looks/project --scale 0.6667 --crf 22 --no-audio -o examples/_looks/looks-720p.mp4

(showtime render never overwrites: delete the old file first, or it writes looks-720p-2.mp4. It also writes looks-720p.poster.jpg, kept here as poster.jpg, and a looks-720p.work/ folder of logs to delete.)

What each scene uses#

• Fluted glass (0-2.8 s): the fluted preset over media/jokulsarlon.jpg, with keys that take the depth from 0 to 0.62 in the first 1.2 s, so the pane forms on screen; the photo then drifts in behind it.
• Tilt-shift (2.8-5.4 s): the miniature preset over media/reykjavik.jpg; one key moves the sharp band from the people in the street (y 0.86) up to the church door (0.66) over 1.6 s.

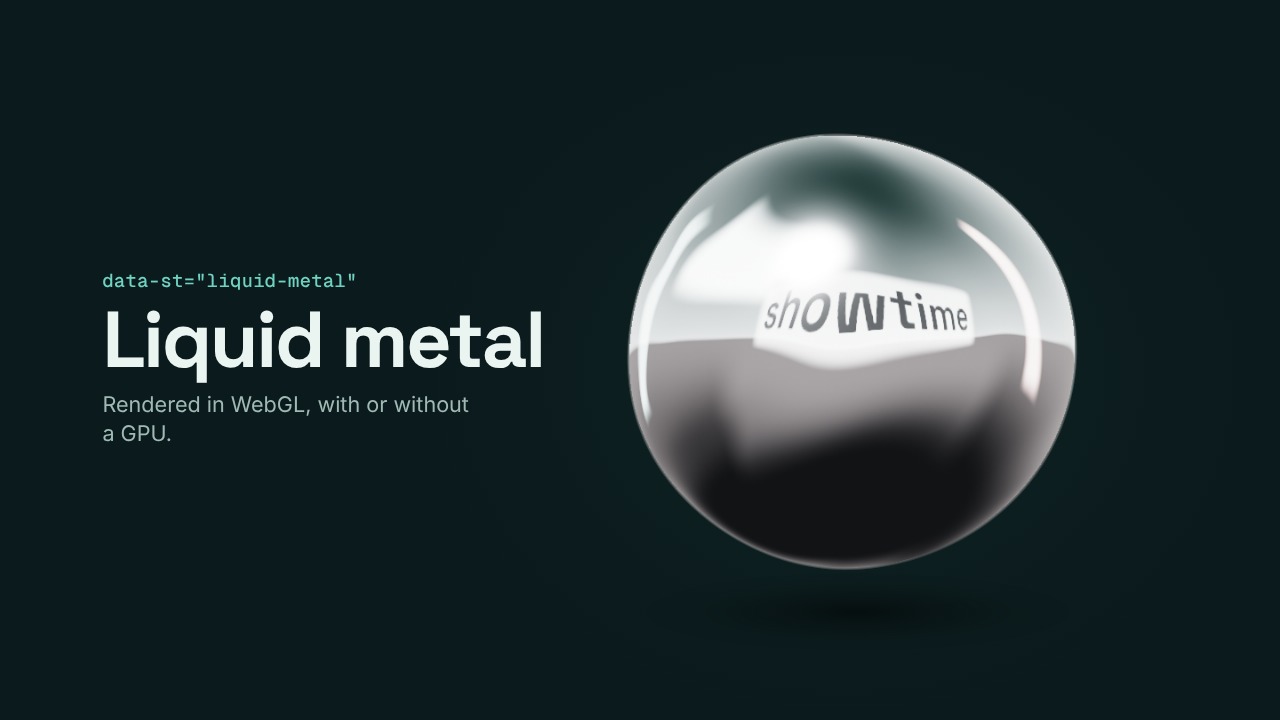

• Liquid metal (5.4-8 s): shape="blob", text="showtime", liquid="0.45" (low enough for the word to read), growing in over 0.7 s. The studio it reflects comes from the page's colours: the Tidewater look signature, a dark ground, so the auto preset picks chrome.
• God rays (8-10.6 s): the dawn preset with text="Northlight": the light comes up over 1 s (in) behind the word and one key moves it from x 0.44 to 0.56, so the beams sweep across the letters.
• Mesh gradient (10.6-13.2 s): the calm preset (its default) on a pale ground, Tidewater's colours in a light scene (--bg: #f2eee6); the colour points drift at speed 5 (a loop of a few seconds: the default is a quiet half minute) behind the title.
• Marble (13.2-15.8 s): the auto preset, which picks white carrara on that pale ground, its veins flowing at speed 1.4.
• Metaballs (15.8-18.4 s): a wipe in a layer from 15.2 to 16.4 s covers the frame across the cut at 15.8 s; then the merge preset (size 0.13, right of the title) grows in over 0.5 s (in) and one key takes spread to 0.1, so the satellites gather into one blob.

Options, presets, costs and fallbacks: skills/showtime/references/components.md §7.

Checks#

• Frame-exact: the looks' test (skills/showtime/tests/test_looks.py) renders a page with the first three looks moving, and one with the four newer ones, with 1 and with 3 workers, with and without a GPU (and the newer ones without WebGL), and compares every frame byte for byte.
• Without WebGL each look draws its fallback; showtime check reports it (look_fallback).
• showtime check estimates what each look costs per frame without a GPU and warns above 50 ms (look_budget); every look on this page stays under it.

Credits#

• "Iceberg reflection in Jökulsárlón (Unsplash)" by Jeremy Bishop, via Wikimedia Commons, CC0 1.0.
• "Hallgrimskirkja, Reykjavík, Iceland (Unsplash)" by Ferdinand Stöhr, via Wikimedia Commons, CC0 1.0.

Both were resized to 1920 px wide for this page; their licence files sit next to them in project/media/.

The project files on GitHub
